The Technical Rope Rescue Foundation

A Comprehensive Curriculum for New Technicians

Technical rope rescue is not defined by the equipment used or by the completion of a single operation. It is defined by the technician’s ability to understand how forces move through a system, how environments shape operational decisions, and how patient outcomes depend on the integrity of every component within the rescue architecture. This curriculum establishes the foundational knowledge required for new rescue technicians to transition from task execution to disciplined system thinking.

At its core, technical rope rescue is an applied engineering discipline. Every rope span, anchor system, directional device, and mechanical advantage configuration represents a controlled management of energy and force. When technicians construct a rescue system, they are not merely assembling equipment—they are designing a temporary structure capable of safely managing gravitational loads, environmental hazards, and human interaction under dynamic conditions. The purpose of this curriculum is therefore to develop technicians who understand not only what to build, but why the system behaves the way it does once it is loaded.

The curriculum begins with the physics of horizontal rigging and vector force management because this domain reveals the true complexity of rope rescue mechanics. Unlike vertical lowering systems where loads move directly along the axis of gravity, horizontal spans introduce geometric force multiplication that can dramatically increase anchor loading. Understanding how interior angles influence resultant forces provides technicians with the analytical framework necessary to evaluate any rigging configuration. This knowledge becomes the intellectual foundation for every subsequent discipline within technical rescue.

From this foundation, the curriculum expands into the use of Artificial High Directionals (AHDs) and edge management strategies. These devices represent engineered solutions to one of the most persistent hazards in rope rescue operations—the interface between rope and terrain. By elevating the rope path above hazardous edges, AHD systems transform hostile environments into controlled operational spaces. Mastery of these systems requires technicians to understand not only structural geometry but also the critical relationship between compression forces, resultant vectors, and the stability of the directional footprint.

Technical rescue rarely occurs in ideal conditions. Therefore, the curriculum also prepares technicians to operate within specialized environments such as confined spaces, tower structures, and swiftwater channels. Each of these environments introduces unique hazards that demand disciplined operational frameworks and strict role separation within the rescue team. Whether managing atmospheric hazards in confined spaces, coordinating tower and ground control during vertical operations, or accounting for the exponential force behavior of moving water, technicians must apply structured decision-making processes that prioritize safety before intervention.

Patient care and packaging represent the point at which engineering precision meets human consequence. A technically perfect rigging system holds little value if the patient is not protected from further injury or psychological distress during extraction. For this reason, the curriculum integrates medical awareness, packaging methodology, and protective considerations directly into the operational framework. Rescue technicians must learn to evaluate patient condition, secure the body within the litter system, and maintain clear communication that stabilizes both the physical and psychological state of the casualty.

Finally, the curriculum introduces the concept of systemology—the discipline of understanding rescue operations as interconnected systems rather than isolated components. Mechanical advantage calculations, friction losses, redundancy planning, and releasable system design are not independent skills. They are parts of a larger engineering process that ensures every rescue system remains adaptable, controllable, and resilient under changing conditions.

The purpose of this curriculum is therefore not simply to teach techniques. Its purpose is to cultivate technicians capable of analyzing force behavior, designing structurally sound systems, operating safely within complex environments, and executing patient-centered rescue operations with disciplined operational control. Through this framework, new technicians gain the foundational competence required to participate safely and effectively in modern technical rescue programs.

Module I

Horizontal Rigging and Vector Force Management

The progression from vertical lifting to horizontal rigging represents a critical tactical shift for the rescue technician. While vertical systems primarily manage a 1:1 load-to-gravity relationship, horizontal rigging becomes a physics-intensive discipline in which forces are redirected across wide spans.

Success in this environment requires technicians to master the management of tension, sag, and the exponential force multiplication generated when loads are suspended between anchors.

Topic 1

The Physics of Vector Forces

In horizontal rigging systems, the interior angle of the rope span determines the stress placed on anchors.

Technicians must visualize vectors as arrows that represent both force magnitude and directional behavior. The interaction of these vectors produces a Resultant Force, which is represented geometrically as the diagonal of the parallelogram formed by the individual vectors.

This resultant vector represents the total force acting on the anchor system.

As the interior angle increases, force multiplication increases dramatically, placing extreme loads on anchors.

At wide interior angles, the anchor system must absorb forces many times greater than the suspended load itself, making vector awareness essential for safe horizontal rigging.

Topic 2

Bombproof Anchor Construction and Hardware

Due to the extreme forces generated by horizontal spans, all anchor systems must be constructed to the highest structural standard.

Technicians must prioritize bombproof anchor construction, selecting anchors capable of sustaining large multi-directional loads.

Common strategies include:

High-Strength Tie-Offs (Tensionless Anchors)
These anchors preserve nearly 100% of the rope’s breaking strength by wrapping the rope around large-diameter structural objects rather than tying knots that reduce strength.

Removable Bolts (RBs)
In rock environments, removable bolts provide:

• Clean anchor construction

• Reliable redundancy

• Efficient load sharing

• Minimal environmental impact

These anchors must be engineered to tolerate multi-directional vector forces common in horizontal systems.

Topic 3

System Classifications (Offsets vs Highlines)

Horizontal rigging systems are categorized according to tension level, engineering complexity, and load-support function.

Guiding Lines

Guiding lines are fixed, low-tension systems that use pulleys to steer a suspended load.

They allow three-dimensional movement, making them ideal for navigating:

• Industrial structures

• Tower voids

• Obstacle-filled environments

• Wall clearances during vertical descent

Tracking Lines

Tracking lines operate under moderate tension and are designed to float a load across uneven terrain.

Key characteristics include:

• Movement restricted largely to a single horizontal plane

• Tension applied only enough to clear obstacles

• Controlled directional travel across terrain

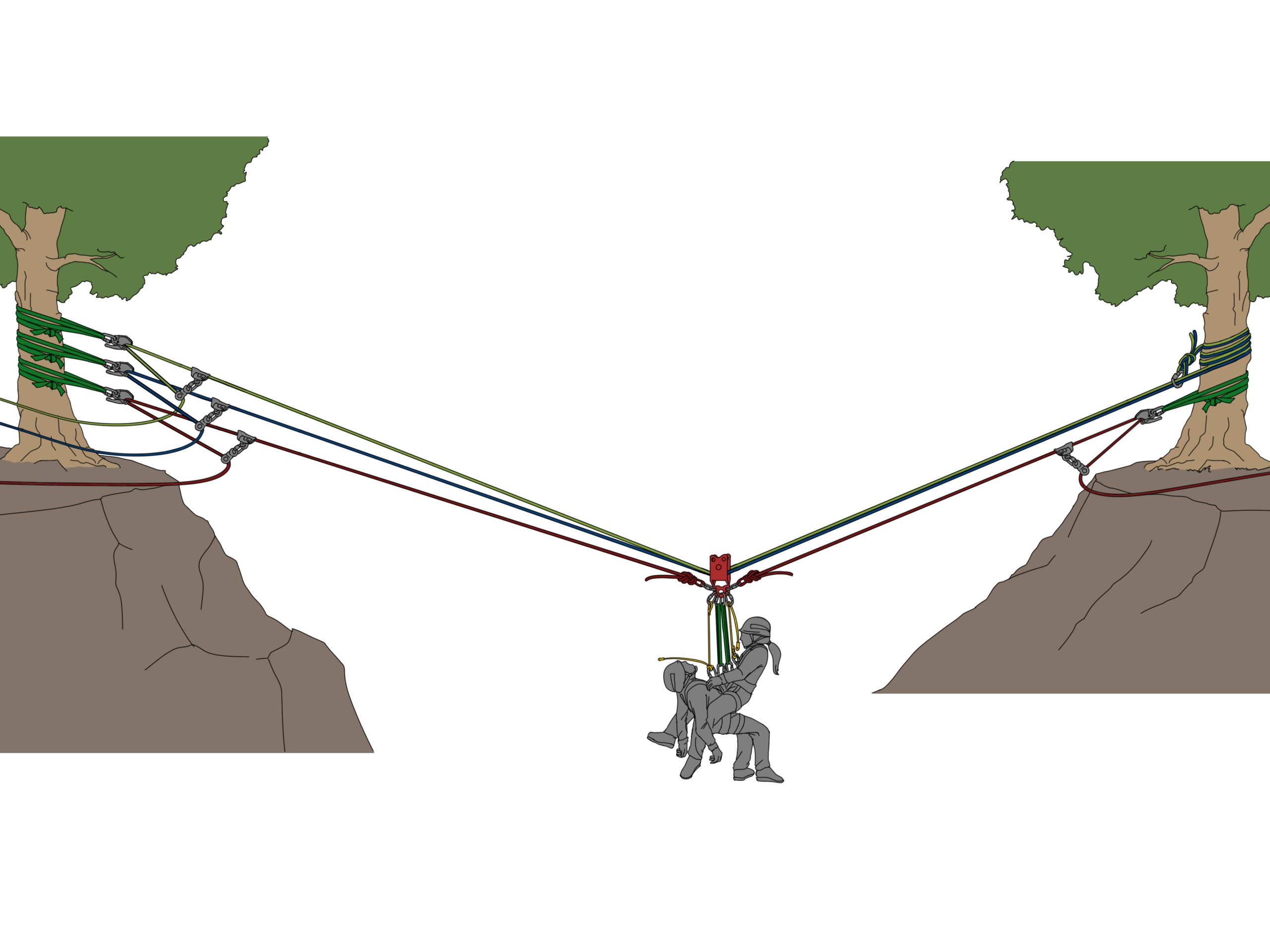

Highlines (Track Lines)

Highlines are fully tensioned horizontal systems designed to carry the entire suspended load across large gaps.

They represent the most complex and force-intensive systems used in rope rescue.

Because of the extreme engineering demands involved, highlines are considered a last-resort solution and require advanced system design and monitoring.

Topic 4

Tensioning and Monitoring Discipline

Proper tensioning discipline is essential to prevent catastrophic anchor overload.

A fundamental operational principle is the 10 Percent Sag Rule, which states that allowing controlled sag within the system reduces the interior vector angle and therefore reduces anchor loading.

Technicians must never tension high-load horizontal systems by feel alone.

Instead, they must employ instrumented monitoring, including:

• Load cells

• Dynamometers

• Inline force measurement devices

These instruments verify the actual tension within the system, eliminating guesswork.

Modern rescue standards increasingly favor Twin Highline Systems, which:

• Distribute load across two independent track lines

• Provide true redundancy

• Reduce sag without over-stressing a single rope

A technician’s mastery of vector awareness and tension monitoring remains the primary safeguard against catastrophic anchor failure.

Module II

Artificial High Directionals (AHD) and Edge Management

Artificial High Directionals (AHDs) are modular, portable anchor structures designed to convert hazardous edges into controlled rope-path interfaces.

NFPA rescue standards require technicians to understand how to deploy these systems in order to elevate rope paths above damaging edges, thereby reducing:

• Friction

• Edge abrasion

• Rope trauma

Topic 1

The Resultant Vector and the Footprint Rule

The footprint of an AHD refers to the geometric area defined by the contact points of its legs.

For an AHD to remain stable, the Resultant Vector—the combined direction of all applied forces—must remain within this footprint.

When this condition is met, the structure remains in compression and stable.

Operational requirements include:

Mandatory Stabilization

All AHD feet must be hobbled to prevent leg splaying under compression.

Operational Discipline

Once loaded, the frame must remain perfectly static.
Guy lines and stabilization systems must eliminate movement.

Critical Safety Warning

Flat or omni feet are designed only for compression loads.
They must never be subjected to tension, as the ball-joint interface may separate, resulting in immediate system collapse.

Topic 2

Operational Modes (Anchor Frame vs Directional Frame)

An AHD may operate in two distinct modes, each producing different force behavior.

Understanding the operational mode is critical before the system is loaded.

Topic 3

Advanced Configurations and “Erring Forward”

When terrain or structural space is limited, technicians deploy specialized directional geometries.

Monopods (Gin Poles)

Single-leg structures with no inherent stability.

They require:

• 3–4 guy lines

• Anchors set greater than 45° from the pole

Bipods (A-Frames)

Bipods are highly effective near cliff edges but require strict front and rear guying to maintain resultant vector alignment within the leg plane.

The Erring Forward Principle

When constructing a monopod system, the pole should lean 5–15 degrees toward the load.

This intentional bias ensures that, once tension is applied, the resultant vector aligns with the compression member, maintaining:

• Proper back-tie tension

• Structural compression stability

• Forward system integrity

Module III

Specialized Rescue Environments and Strategic Frameworks

Technical rescue operations often occur within specialized environments such as confined spaces, towers, and swiftwater channels. Each environment introduces distinct hazards that require dedicated operational strategies.

A widely used strategic framework for such environments is A.T.L.A.S.T.:

• Atmosphere

• Time

• Locate

• Access

• Stabilize

• Transport

This model ensures that environmental hazards are addressed before patient intervention begins.

Topic 1

Confined Space Atmospheric Management

Atmospheric hazards represent the leading cause of fatalities in confined space operations.

Rescuers must distinguish between:

• IDLH atmospheres (Immediately Dangerous to Life or Health)

• Breathable atmospheres

Operational requirements include:

Continuous Monitoring

Multi-gas detectors must remain active throughout the entry.

Calibration Discipline

All sensors must undergo:

• Span calibration

• Bump testing

• Fresh-air zeroing

Engineering Controls

Ventilation systems must provide at least twenty air exchanges per hour.

Documentation

Atmospheric data must be recorded using continuous data logging.

Topic 2

Tower Rescue Command Structure

Tower rescues require strict separation of operational responsibilities due to the complexity of vertical environments.

Tower Control

Responsible for:

• Load interface management

• Patient airway monitoring

• Edge transitions

Ground Control

Functions as the operational power center, managing:

• Mechanical advantage systems

• Belay systems

• Haul operations

Clear communication between these roles is essential. Teams must employ standardized commands and conduct whistle tests to ensure signals are heard over environmental noise.

Topic 3

Swiftwater River Dynamics

Swiftwater systems operate under the Velocity Squared Rule, meaning water force increases exponentially as current speed rises.

If current velocity doubles, water force increases fourfold.

Rigging strategies often include:

• Two-point anchor systems with assist for speed

• Three-point anchors with vector assist for precise positioning

Real-time ferry angle adjustments allow rescuers to navigate current channels safely.

Prusik-minding pulleys are required for progress capture, preventing backward movement of loads under heavy water force.

Module IV

Patient Care, Packaging, and Extraction

All technical rigging decisions must ultimately serve the physiological and psychological needs of the patient.

The objective is a holistic rescue approach that integrates mechanical safety with patient stability and reassurance.

Topic 1

Primary Survey and Psychological First Aid

The Primary Survey (ABCs) must be completed within approximately sixty seconds.

Rescuers must immediately address:

• Airway

• Breathing

• Circulation

At the same time, psychological first aid is essential. Clear communication during every movement—such as informing the patient before lifting—reduces anxiety and helps mitigate shock.

Topic 2

Lashing Hierarchies and Protection

Patient packaging must stabilize the casualty and prevent further injury.

Internal Lashings

Connect the patient’s harness directly to the litter frame to counteract gravitational movement.

External Lashings

Encapsulate the patient and prevent limb movement while increasing perceived security.

Once spinal stabilization is complete, head and eye protection must be applied. All void spaces within the litter must be padded to prevent pressure injuries and vibration trauma.

Topic 3

Specialized Extraction Devices

Different environments require different patient packaging tools.

Yates Spec Pak

A semi-rigid litter with an integrated harness, ideal for vertical confined-space extraction.

Sked Stretcher

Designed for narrow portals, often as small as 24 inches in diameter.

During vertical lifting, the Sked produces a wedge effect that naturally secures the patient as the stretcher tightens around the body.

Module V

Advanced Systemology and Operational Discipline

Systemology represents the transition from simple hardware inspection to the engineering of an integrated rescue architecture.

This discipline evaluates how equipment, angles, force paths, and human operators interact within the entire system.

Topic 1

Theoretical vs Actual Mechanical Advantage

Theoretical Mechanical Advantage (TMA) is calculated by counting rope segments.

However, real-world conditions introduce friction from:

• Bearings

• Sheave inefficiency

• Rope bends

• Edge drag

As a result, a system calculated as 5:1 TMA often produces only about 3:1 actual mechanical advantage in the field.

Technicians must verify system performance using dynamometers such as the Enforcer, rather than relying solely on theoretical calculations.

Topic 2

The Two-System Approach

True redundancy requires two fully independent systems.

This independence must exist in three critical areas:

Separate Anchors

Anchors must be geographically distinct to avoid single-point structural failure.

Distinct Load Paths

Load paths must not cross or share hazard exposure.

Separate Operators

Independent operators reduce cognitive overload and prevent mirrored human errors.

Topic 3

Pre-Rigging for System Transitions

Modern rescue architecture favors releasable system design.

Devices such as the CMC Clutch or MPD allow technicians to switch between raising and lowering operations without dismantling the system.

This design ensures that any system can be immediately converted into a controlled lowering operation if a raise fails.

Mastery of technical rescue ultimately begins where the initial plan ends, through disciplined failure analysis, engineering foresight, and leadership within the rescue program.

Module I

Horizontal Rigging and Vector Force Management

The progression from vertical lifting to horizontal rigging represents a critical tactical shift for the rescue technician. While vertical systems primarily manage a 1:1 load-to-gravity relationship, horizontal rigging becomes a physics-intensive discipline in which forces are redirected across wide spans.

Success in this environment requires technicians to master the management of tension, sag, and the exponential force multiplication generated when loads are suspended between anchors.

Topic 1

The Physics of Vector Forces

In horizontal rigging systems, the interior angle of the rope span determines the stress placed on anchors.

Technicians must visualize vectors as arrows that represent both force magnitude and directional behavior. The interaction of these vectors produces a Resultant Force, which is represented geometrically as the diagonal of the parallelogram formed by the individual vectors.

This resultant vector represents the total force acting on the anchor system.

As the interior angle increases, force multiplication increases dramatically, placing extreme loads on anchors.

At wide interior angles, the anchor system must absorb forces many times greater than the suspended load itself, making vector awareness essential for safe horizontal rigging.

Topic 2

Bombproof Anchor Construction and Hardware

Due to the extreme forces generated by horizontal spans, all anchor systems must be constructed to the highest structural standard.

Technicians must prioritize bombproof anchor construction, selecting anchors capable of sustaining large multi-directional loads.

Common strategies include:

High-Strength Tie-Offs (Tensionless Anchors)
These anchors preserve nearly 100% of the rope’s breaking strength by wrapping the rope around large-diameter structural objects rather than tying knots that reduce strength.

Removable Bolts (RBs)
In rock environments, removable bolts provide:

• Clean anchor construction

• Reliable redundancy

• Efficient load sharing

• Minimal environmental impact

These anchors must be engineered to tolerate multi-directional vector forces common in horizontal systems.

Topic 3

System Classifications (Offsets vs Highlines)

Horizontal rigging systems are categorized according to tension level, engineering complexity, and load-support function.

Guiding Lines

Guiding lines are fixed, low-tension systems that use pulleys to steer a suspended load.

They allow three-dimensional movement, making them ideal for navigating:

• Industrial structures

• Tower voids

• Obstacle-filled environments

• Wall clearances during vertical descent

Tracking Lines

Tracking lines operate under moderate tension and are designed to float a load across uneven terrain.

Key characteristics include:

• Movement restricted largely to a single horizontal plane

• Tension applied only enough to clear obstacles

• Controlled directional travel across terrain

Highlines (Track Lines)

Highlines are fully tensioned horizontal systems designed to carry the entire suspended load across large gaps.

They represent the most complex and force-intensive systems used in rope rescue.

Because of the extreme engineering demands involved, highlines are considered a last-resort solution and require advanced system design and monitoring.

Topic 4

Tensioning and Monitoring Discipline

Proper tensioning discipline is essential to prevent catastrophic anchor overload.

A fundamental operational principle is the 10 Percent Sag Rule, which states that allowing controlled sag within the system reduces the interior vector angle and therefore reduces anchor loading.

Technicians must never tension high-load horizontal systems by feel alone.

Instead, they must employ instrumented monitoring, including:

• Load cells

• Dynamometers

• Inline force measurement devices

These instruments verify the actual tension within the system, eliminating guesswork.

Modern rescue standards increasingly favor Twin Highline Systems, which:

• Distribute load across two independent track lines

• Provide true redundancy

• Reduce sag without over-stressing a single rope

A technician’s mastery of vector awareness and tension monitoring remains the primary safeguard against catastrophic anchor failure.

Module II

Artificial High Directionals (AHD) and Edge Management

Artificial High Directionals (AHDs) are modular, portable anchor structures designed to convert hazardous edges into controlled rope-path interfaces.

NFPA rescue standards require technicians to understand how to deploy these systems in order to elevate rope paths above damaging edges, thereby reducing:

• Friction

• Edge abrasion

• Rope trauma

Topic 1

The Resultant Vector and the Footprint Rule

The footprint of an AHD refers to the geometric area defined by the contact points of its legs.

For an AHD to remain stable, the Resultant Vector—the combined direction of all applied forces—must remain within this footprint.

When this condition is met, the structure remains in compression and stable.

Operational requirements include:

Mandatory Stabilization

All AHD feet must be hobbled to prevent leg splaying under compression.

Operational Discipline

Once loaded, the frame must remain perfectly static.
Guy lines and stabilization systems must eliminate movement.

Critical Safety Warning

Flat or omni feet are designed only for compression loads.
They must never be subjected to tension, as the ball-joint interface may separate, resulting in immediate system collapse.

Topic 2

Operational Modes (Anchor Frame vs Directional Frame)

An AHD may operate in two distinct modes, each producing different force behavior.

Understanding the operational mode is critical before the system is loaded.

Topic 3

Advanced Configurations and “Erring Forward”

When terrain or structural space is limited, technicians deploy specialized directional geometries.

Monopods (Gin Poles)

Single-leg structures with no inherent stability.

They require:

• 3–4 guy lines

• Anchors set greater than 45° from the pole

Bipods (A-Frames)

Bipods are highly effective near cliff edges but require strict front and rear guying to maintain resultant vector alignment within the leg plane.

The Erring Forward Principle

When constructing a monopod system, the pole should lean 5–15 degrees toward the load.

This intentional bias ensures that, once tension is applied, the resultant vector aligns with the compression member, maintaining:

• Proper back-tie tension

• Structural compression stability

• Forward system integrity

Module III

Specialized Rescue Environments and Strategic Frameworks

Technical rescue operations often occur within specialized environments such as confined spaces, towers, and swiftwater channels. Each environment introduces distinct hazards that require dedicated operational strategies.

A widely used strategic framework for such environments is A.T.L.A.S.T.:

• Atmosphere

• Time

• Locate

• Access

• Stabilize

• Transport

This model ensures that environmental hazards are addressed before patient intervention begins.

Topic 1

Confined Space Atmospheric Management

Atmospheric hazards represent the leading cause of fatalities in confined space operations.

Rescuers must distinguish between:

• IDLH atmospheres (Immediately Dangerous to Life or Health)

• Breathable atmospheres

Operational requirements include:

Continuous Monitoring

Multi-gas detectors must remain active throughout the entry.

Calibration Discipline

All sensors must undergo:

• Span calibration

• Bump testing

• Fresh-air zeroing

Engineering Controls

Ventilation systems must provide at least twenty air exchanges per hour.

Documentation

Atmospheric data must be recorded using continuous data logging.

Topic 2

Tower Rescue Command Structure

Tower rescues require strict separation of operational responsibilities due to the complexity of vertical environments.

Tower Control

Responsible for:

• Load interface management

• Patient airway monitoring

• Edge transitions

Ground Control

Functions as the operational power center, managing:

• Mechanical advantage systems

• Belay systems

• Haul operations

Clear communication between these roles is essential. Teams must employ standardized commands and conduct whistle tests to ensure signals are heard over environmental noise.

Topic 3

Swiftwater River Dynamics

Swiftwater systems operate under the Velocity Squared Rule, meaning water force increases exponentially as current speed rises.

If current velocity doubles, water force increases fourfold.

Rigging strategies often include:

• Two-point anchor systems with assist for speed

• Three-point anchors with vector assist for precise positioning

Real-time ferry angle adjustments allow rescuers to navigate current channels safely.

Prusik-minding pulleys are required for progress capture, preventing backward movement of loads under heavy water force.

Module IV

Patient Care, Packaging, and Extraction

All technical rigging decisions must ultimately serve the physiological and psychological needs of the patient.

The objective is a holistic rescue approach that integrates mechanical safety with patient stability and reassurance.

Topic 1

Primary Survey and Psychological First Aid

The Primary Survey (ABCs) must be completed within approximately sixty seconds.

Rescuers must immediately address:

• Airway

• Breathing

• Circulation

At the same time, psychological first aid is essential. Clear communication during every movement—such as informing the patient before lifting—reduces anxiety and helps mitigate shock.

Topic 2

Lashing Hierarchies and Protection

Patient packaging must stabilize the casualty and prevent further injury.

Internal Lashings

Connect the patient’s harness directly to the litter frame to counteract gravitational movement.

External Lashings

Encapsulate the patient and prevent limb movement while increasing perceived security.

Once spinal stabilization is complete, head and eye protection must be applied. All void spaces within the litter must be padded to prevent pressure injuries and vibration trauma.

Topic 3

Specialized Extraction Devices

Different environments require different patient packaging tools.

Yates Spec Pak

A semi-rigid litter with an integrated harness, ideal for vertical confined-space extraction.

Sked Stretcher

Designed for narrow portals, often as small as 24 inches in diameter.

During vertical lifting, the Sked produces a wedge effect that naturally secures the patient as the stretcher tightens around the body.

Module V

Advanced Systemology and Operational Discipline

Systemology represents the transition from simple hardware inspection to the engineering of an integrated rescue architecture.

This discipline evaluates how equipment, angles, force paths, and human operators interact within the entire system.

Topic 1

Theoretical vs Actual Mechanical Advantage

Theoretical Mechanical Advantage (TMA) is calculated by counting rope segments.

However, real-world conditions introduce friction from:

• Bearings

• Sheave inefficiency

• Rope bends

• Edge drag

As a result, a system calculated as 5:1 TMA often produces only about 3:1 actual mechanical advantage in the field.

Technicians must verify system performance using dynamometers such as the Enforcer, rather than relying solely on theoretical calculations.

Topic 2

The Two-System Approach

True redundancy requires two fully independent systems.

This independence must exist in three critical areas:

Separate Anchors

Anchors must be geographically distinct to avoid single-point structural failure.

Distinct Load Paths

Load paths must not cross or share hazard exposure.

Separate Operators

Independent operators reduce cognitive overload and prevent mirrored human errors.

Topic 3

Pre-Rigging for System Transitions

Modern rescue architecture favors releasable system design.

Devices such as the CMC Clutch or MPD allow technicians to switch between raising and lowering operations without dismantling the system.

This design ensures that any system can be immediately converted into a controlled lowering operation if a raise fails.

Mastery of technical rescue ultimately begins where the initial plan ends, through disciplined failure analysis, engineering foresight, and leadership within the rescue program.

Summary

Integration of Systems, Environment, and Patient Care

Technical rope rescue is a discipline built on the intersection of physics, engineering, environmental awareness, and patient-centered operational judgment. The curriculum presented within this foundation establishes the essential competencies required for technicians entering the field of complex rescue operations.

The study begins with horizontal rigging and vector force management because these systems expose the underlying mechanics that govern all rope rescue operations. By learning how interior angles amplify forces and how sag influences tension distribution, technicians develop the analytical awareness required to construct anchor systems capable of safely supporting suspended loads. This knowledge prevents one of the most common causes of system failure: underestimating the forces generated within wide-span rigging systems.

Building upon this foundation, the curriculum introduces Artificial High Directionals and edge management techniques. These systems extend the capabilities of rescue teams by creating controlled rope paths above hazardous terrain. When used correctly, directional frames transform unstable edges into predictable mechanical interfaces. The safe use of these systems depends on maintaining proper vector alignment within the directional footprint and ensuring the structural integrity of compression members and stabilization systems.

Rescue environments themselves often introduce hazards equal to or greater than the rigging systems used within them. Confined spaces require constant atmospheric monitoring and ventilation management to prevent toxic exposure. Tower rescues demand strict operational coordination between personnel managing vertical operations and those controlling ground-based mechanical advantage systems. Swiftwater environments introduce powerful hydraulic forces that can overwhelm poorly designed rigging systems. Each of these scenarios demonstrates that successful rescue operations depend on disciplined situational awareness and structured command coordination.

While engineering principles dominate the construction of rescue systems, the ultimate objective of every operation remains the safe recovery and stabilization of the patient. Packaging procedures must secure the casualty within the litter while protecting against further trauma caused by movement, vibration, or environmental exposure. Internal and external lashing systems work together to immobilize the patient, while protective equipment ensures the head, eyes, and extremities remain shielded during movement through complex terrain or confined structures.

The final stage of the curriculum addresses systemology and operational discipline. Here, technicians learn that rescue systems must be evaluated as integrated networks rather than isolated devices. Theoretical mechanical advantage calculations must be validated against real-world friction losses. Redundant systems must remain physically independent to prevent single-point failures. Equipment must be configured to allow immediate transitions between raising and lowering operations when conditions change unexpectedly.

Taken together, these principles form the structural backbone of modern rope rescue practice. Horizontal rigging, directional devices, specialized environmental operations, patient packaging, and advanced system design are not separate subjects—they are interconnected elements of a single operational system. Mastery occurs when technicians understand how each element influences the others and can design rescue solutions that remain stable, adaptable, and safe under real-world conditions.

Through this integrated approach, the curriculum prepares new technicians to move beyond procedural memorization toward system-level understanding. By grounding every operational decision in physics, structural awareness, and patient-centered priorities, rescue teams can build systems that are not only functional but also resilient against the unpredictable challenges encountered in the field.
