Elevated Anchors and Managing Resultants in Rope Rigging Systems

The use of elevated anchors, also known as high directional anchor systems, is a critical component in advanced rope rigging. Mandated by NFPA 1670 for rope technicians, these systems address edge management challenges, reduce friction at the edge, and maintain stability through proper force vector and resultant management.

Rope rigging, much like a living organism, consists of interconnected parts working together to achieve a unified purpose. Understanding elevated anchors requires not only technical skills but also a holistic approach to ensure safety and functionality.

Elevated Anchors: Purpose and Application

Elevated anchors are primarily used to overcome edge trauma and manage friction at the edge of a cliff, building, or other high-angle environments. Their design ensures:

• Edge Management: Minimizing damage to ropes and reducing resistance during rescue operations.
• Force Vector Control: Analyzing and managing resultants to maintain stability and prevent system failure.

These systems are vital in both natural and industrial settings, where edges are often unprotected. Proper setup and operation ensure safety for both the rescuers and the individuals being rescued.

CMC Arizona Vortex 2 Multipod

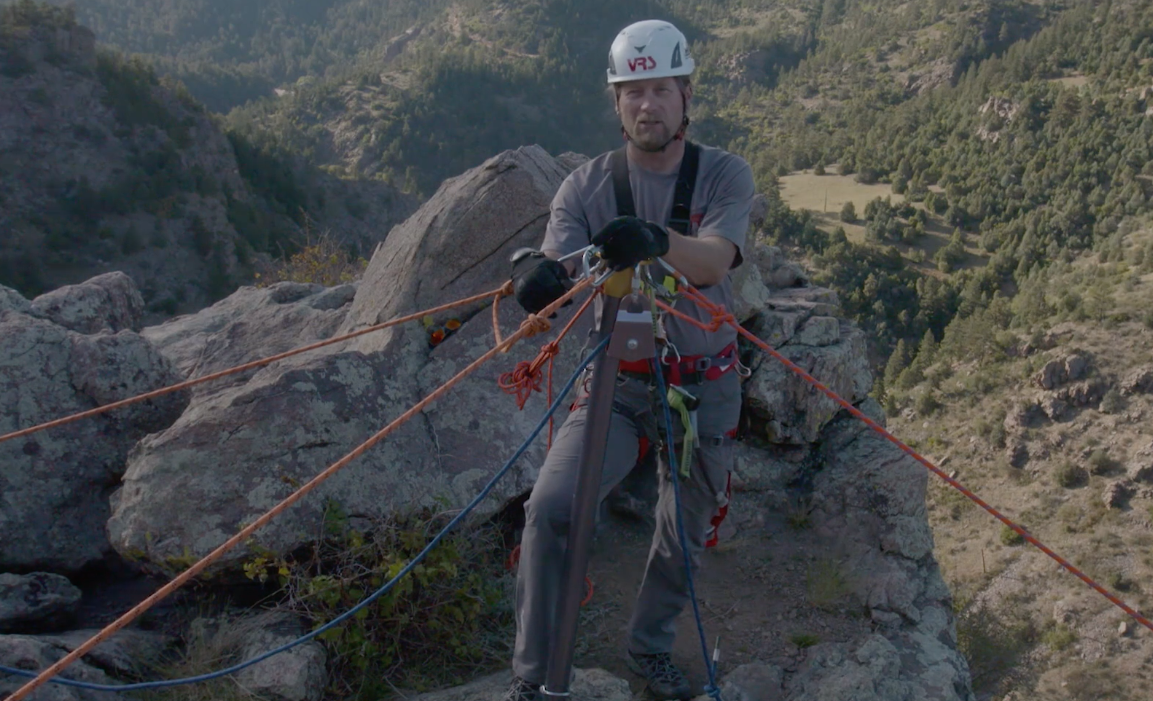

TerrAdaptor Gin Pole Kit

TerrAdaptor (Artificial High Directional) Portable Anchor System

Setting Up Elevated Anchors

When deploying elevated anchor systems, meticulous planning is essential:

1. Belay Into Place: Use a single tagline to safely maneuver the system into position. Tie off the tagline at a secure anchor point as a safety measure.
2. Resultant Management: Understand the resultant forces and their direction to ensure the anchor system remains stable. Mismanaged resultants can topple the tripod or high directional, endangering the entire operation.
3. Dynamic Event Preparedness: Anticipate potential edge failures or mainline issues. Even with system belays in place, ensure all components can handle sudden changes in force vectors.

Advanced Gear for Elevated Anchors

Modern advancements in rescue gear have made high directional systems more efficient and compact. Popular options include:

• CMC Arizona Vortex 2 Multipod: A versatile and robust high directional system.
• TerrAdaptor Gin Pole Kit: Designed for complex rescue scenarios.
• TerrAdaptor Portable Anchor System: Portable and adaptable for various terrains.

These tools allow rescuers to work closer to the edge, enhancing the effectiveness of high-angle rescue operations.

Twin Tension Rope Systems and Artificial High Directionals

Elevated anchors often integrate with Twin Tension Rope Systems (TTRS) to enhance safety and efficiency. TTRS eliminates fall factors and shock loading, making it the preferred method for lowering and raising rescue loads. By maintaining equal tension on two ropes, this system provides stability and reduces the risk of component failure.

For more insights into TTRS and artificial high directional systems, visit the Rigging Lab Academy.

Final Thoughts

Elevated anchors and resultant management are critical skills for any rope rescue technician. As edge management becomes more complex, understanding and mastering these systems are non-negotiable. Whether using state-of-the-art tools like the CMC Arizona Vortex or integrating advanced techniques like TTRS, the goal remains the same: safety, efficiency, and effective rescue operations.

To dive deeper into these systems and their applications, explore the resources and courses at the Rigging Lab Academy.

Peace on your days!

Lance
